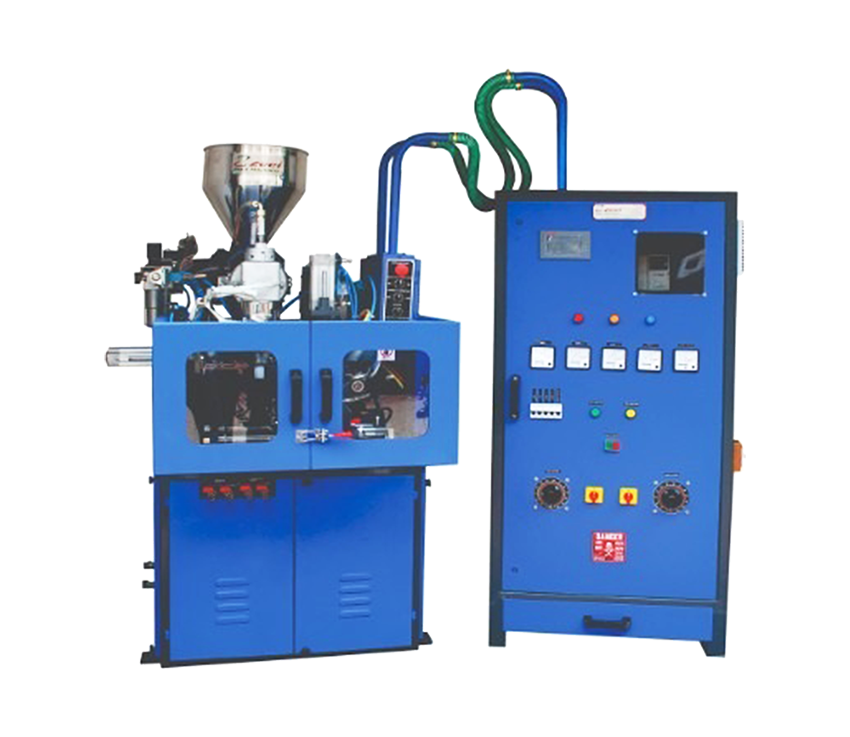

Zeel Plast Machinary Manufacture wide range of blow moulding machine. This machine equipped with unique mould quality and simple operating system. The blow mouding machine available with continuous parison also.
| MODELS | UNIT | 250ML ( H1/SS) |
|---|---|---|
| Screw Diameter | MM | 32 |
| L.D. Ratio | L/D | 22.1 |
| Blowing Capacity | ML | 250 |
| Screw Speed | RPM | 75 |
| Plasticizing Cap. | Kg/Hr. | 05 - September |
| Heating Zone | Nos. | 4 |
| Max. Article Wt. | Gms | 20 |
| Mould Opening Stroke | MM | 125 |
| Min. Mould Thickness | MM | 135 |
| Mould Length | MM | 175 |
| Mould Width | MM | 135 |
| Dry Cycles/Min. | Nos. | 18 |
| D Max. Cont. Dia | MM | 65 |
| Extruder Drive | HP | 2 |
| Hydraulic Motor | HP | - |
| Heating Load | HP | 4.2 |
| Total Power of M/c. | HP | 6.2 |
| Hopper Magnet | - | STD |
| Hot Wire Cutter | - | STD |
| Parison Program | - | OPT |
| Angular Blowing System | - | OPT |
| Bottom Blowing Systems | - | OPT |
| Hydraulic Blowing Systems | - | OPT |
| Oil Tank Capacity | Ltrs | - |
| M/c.Dimension | (LxWxH) (ft) | 4.6 x 2.4 x 4.6 |
| Control Panel Dimension | (LxWxH) (ft) | 1.6 x 1.8 x 4.6 |
| Machine & Panel | Wt. Kgs. | 600 |
| Air Pressure | Kg/Sq/Cm | 4 to 10 |
| Water Pressure | Kg/Sq/Cm | 3 to 5 |
