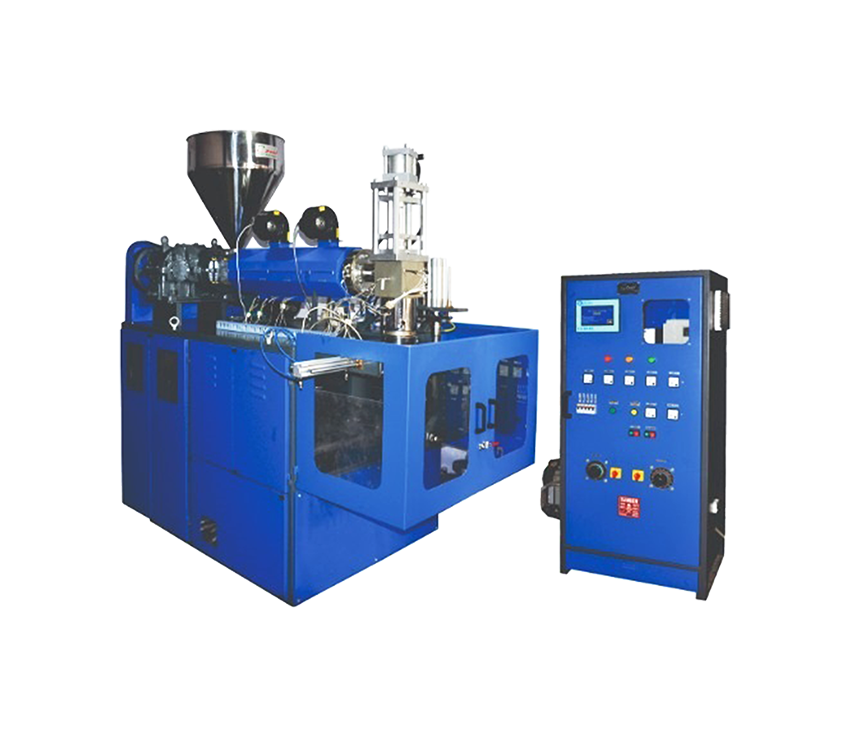

Zeel Plast Machinary Manufacture wide range of blow moulding machine. This unique machines can be used to manufacture 1000 ml Single Station Plastic Extrusion Blow Moulding Machine With Hydraulic Blowpin. This machine equipped with unique mould quality and simple operating system. The blow mouding machine available with continuous parison also.
| MODELS | UNIT | 2000ML |
|---|---|---|
| Screw Diameter | MM | 55 |
| L.D. Ratio | L/D | 22.1 |
| Blowing Capacity | ML | 2000 |
| Screw Speed | RPM | 75 |
| Plasticizing Cap. | Kg/Hr. | 24/28 |
| Heating Zone | Nos. | 6 |
| Mould Opening Stroke | MM | 250 |
| Min. Mould Thickness | MM | 210 |
| Mould Length | MM | 360 |
| Mould Width | MM | 250 |
| Dry Cycles/Min. | Nos. | 12 |
| Max. Cont. Dia | MM | 160 |
| Extruder Drive | HP | 10 |
| Hydraulic Motor | HP | 5 |
| Heating Load | HP | 9.5 |
| Blower | HP | OTP |
| Total Power of M/c. | HP | 24.5 |
| Hot Wire Cutter | - | STD |
| Parison Program | - | OPT |
| Angular Blowing System | - | OPT |
| Bottom Blowing Systems | - | OPT |
| Hydraulic Blowing Systems | - | OPT |
| Oil Tank Capacity | Ltrs. | 200 |
| M/c.Dimension | (LxWxH) (Ft) | 6.3 x 5 x 5.5 |
| Control Panel Dimension | (LxWxH) (Ft) | 1.6 x 1.8 x 4.6 |
| Air Pressure | Kg/Sq/Cm | 12 to 14 |
